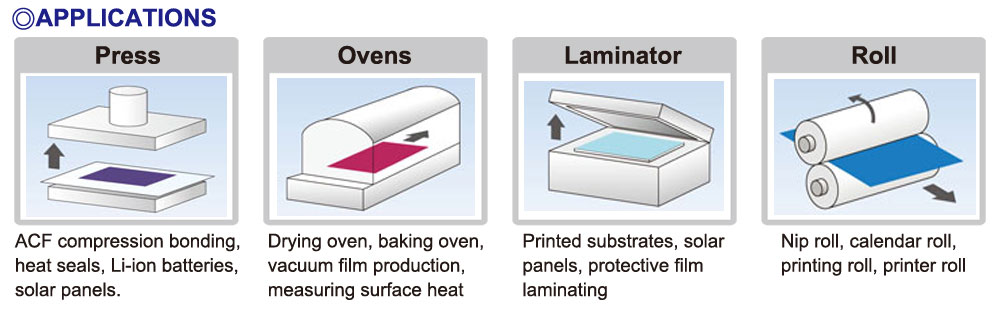

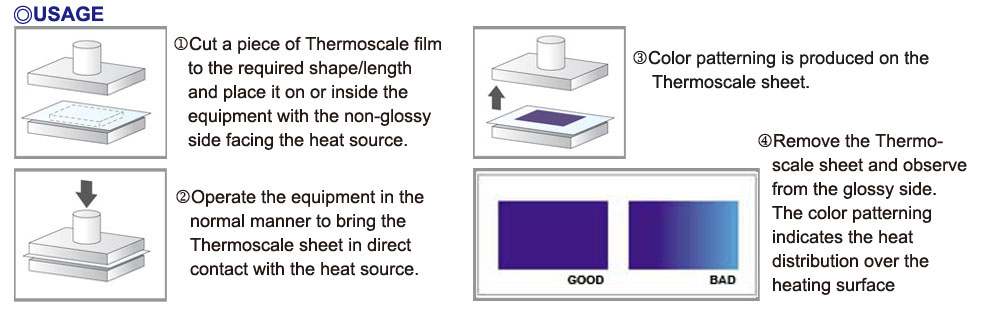

THERMOSCALE is a revolutionary new film that enables anyone to measure heat distribution easily by observing the variation in density and hue.Simply cut to size and insert as required. Available in a wide range of temperatures (150～210℃) to suit a variety of different applications.

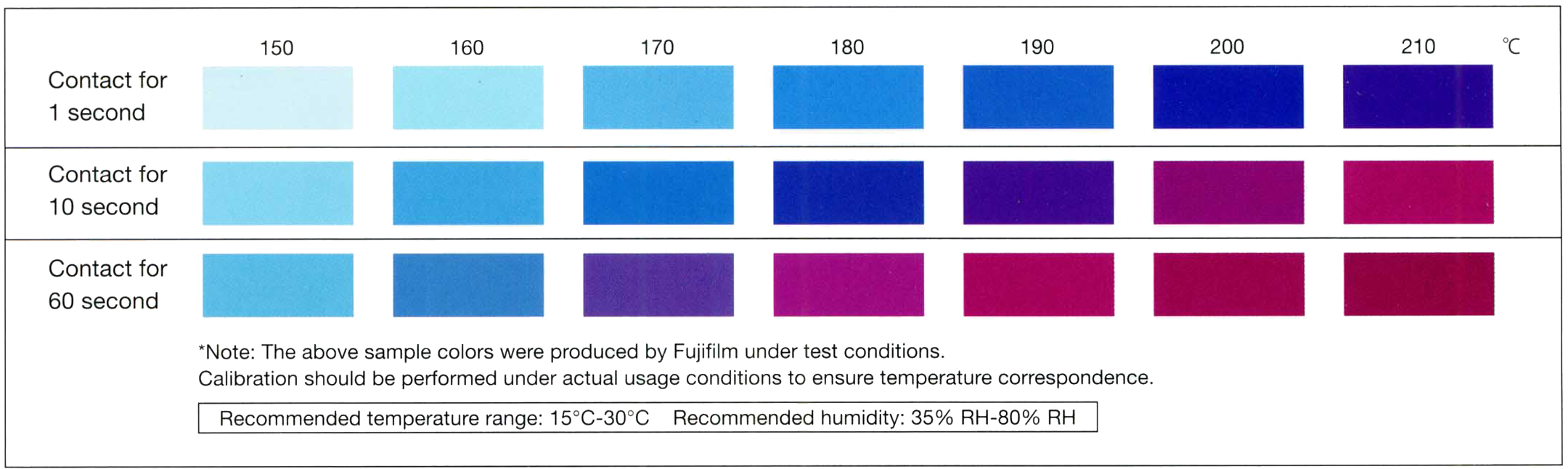

The extent of color change depends on the temperature of heat source and the contact time. A shorter contact time produces paler colors with a blue tint. As the contact time increases (at the same temperature), the colors become deeper and take on a red tint.

Note that the color change is also influenced by factors such as the type of material on the opposite side (i.e., the non-heat source side), thermal characteristics, contact pressure and air flow (see below).
