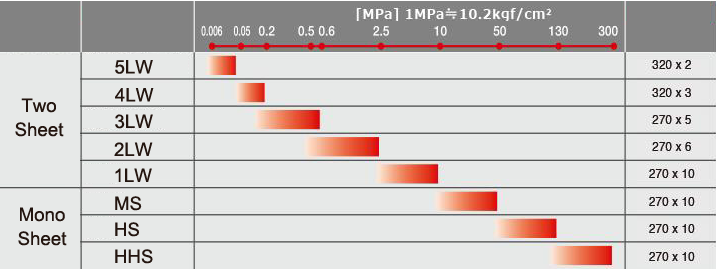

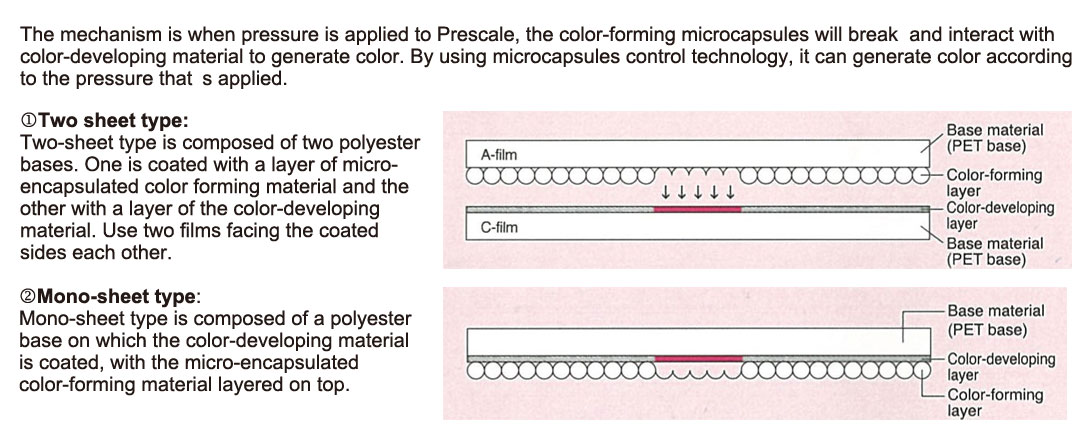

FujiFilm's Prescale can converts pressure into numerical data and measure the pressure between the attaching surfaces. The measurement range is: 0.5~3000 kgf/c㎡.

This solution can effectively improve products quality and overcome the drawback of judging the mechanism through experience, then reduce the costs.

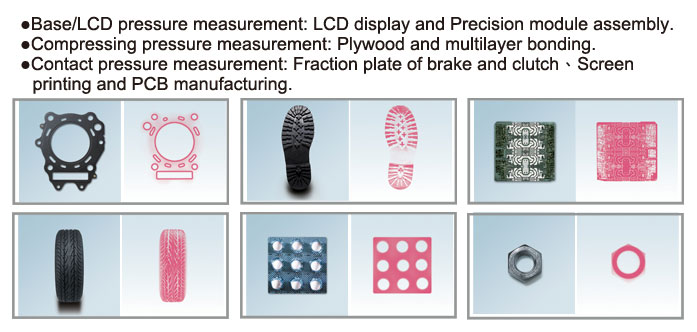

The application field includes the industries for tile production, spring design, cloth embossing, lathe engaging, musical instrument, furniture, LCD module, aerospace, tire and biomedical clinical analysis…etc.
